Question

使用产品：iserver 10i  操作系统：linux os7.7
数据类型： 流数据服务
问题详细描述：按照手册，安装了环境，用的内置spark，两个子节点，自己测试的websocket,还有例子的flight数据都没有走通

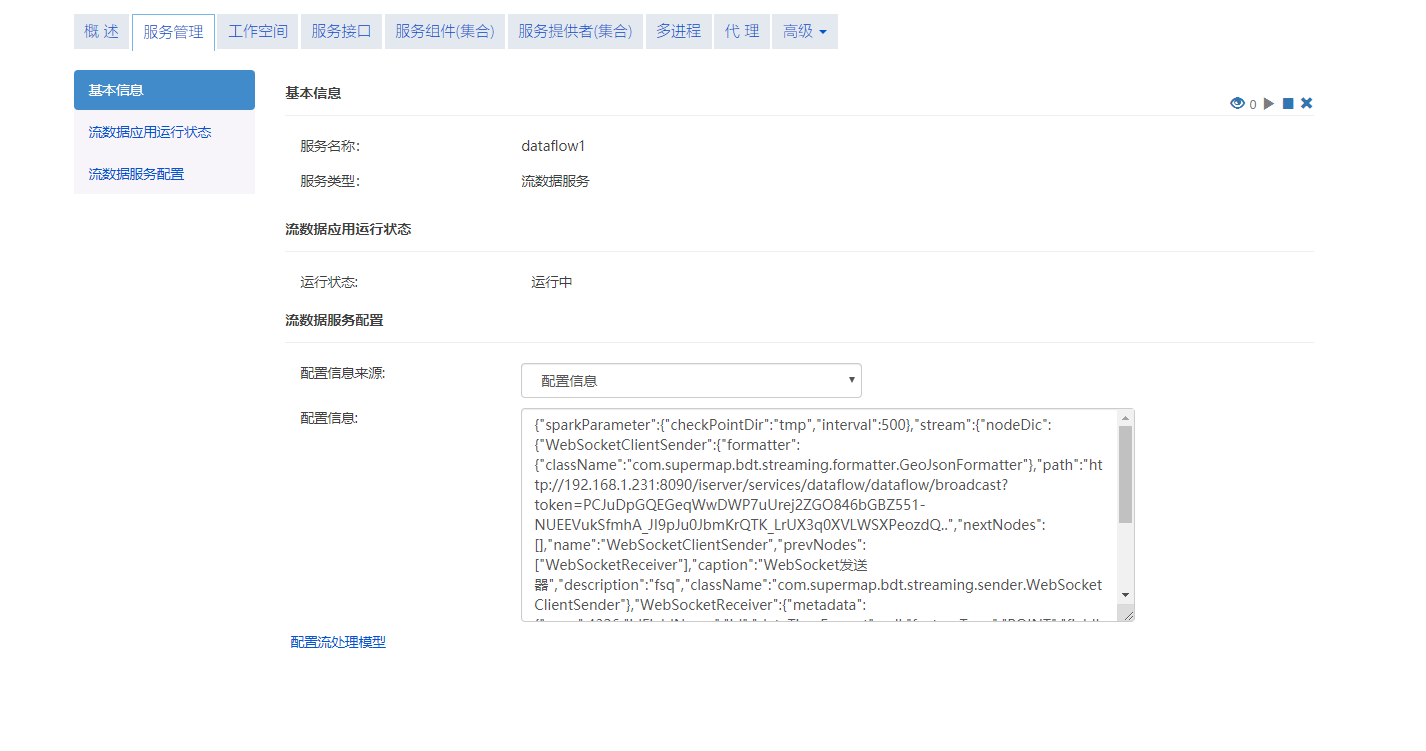

流处理模型：{"sparkParameter":{"checkPointDir":"tmp","interval":500},"stream":{"nodeDic":{"WebSocketClientSender":{"formatter":{"className":"com.supermap.bdt.streaming.formatter.GeoJsonFormatter"},"path":"http://192.168.1.231:8090/iserver/services/dataflow/dataflow/broadcast?token=PCJuDpGQEGeqWwDWP7uUrej2ZGO846bGBZ551-NUEEVukSfmhA_JI9pJu0JbmKrQTK_LrUX3q0XVLWSXPeozdQ..","nextNodes":[],"name":"WebSocketClientSender","prevNodes":["WebSocketReceiver"],"caption":"WebSocket发送器","description":"fsq","className":"com.supermap.bdt.streaming.sender.WebSocketClientSender"},"WebSocketReceiver":{"metadata":{"epsg":4326,"idFieldName":"id","dateTimeFormat":null,"featureType":"POINT","fieldInfos":[{"name":"id","source":"0","nType":"INT32"}]},"nextNodes":["WebSocketClientSender"],"reader":{"className":"com.supermap.bdt.streaming.formatter.GeoJsonFormatter"},"name":"WebSocketReceiver","prevNodes":[],"caption":"WebSocket接收器","className":"com.supermap.bdt.streaming.receiver.WebSocketReceiver","url":"ws://192.168.1.86:8001","description":null}}},"version":9000}

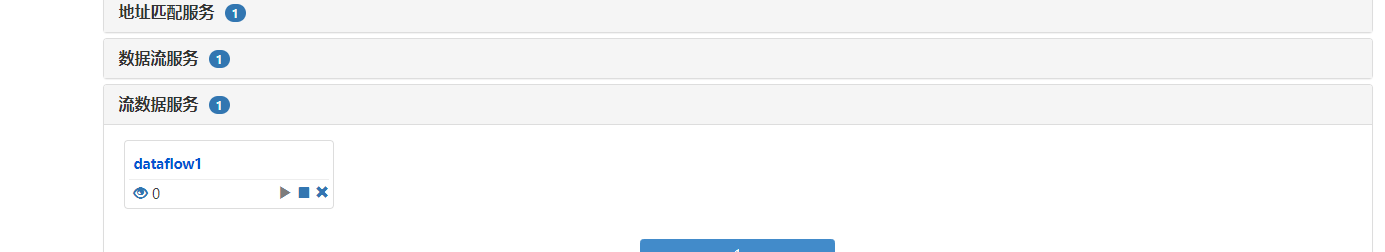

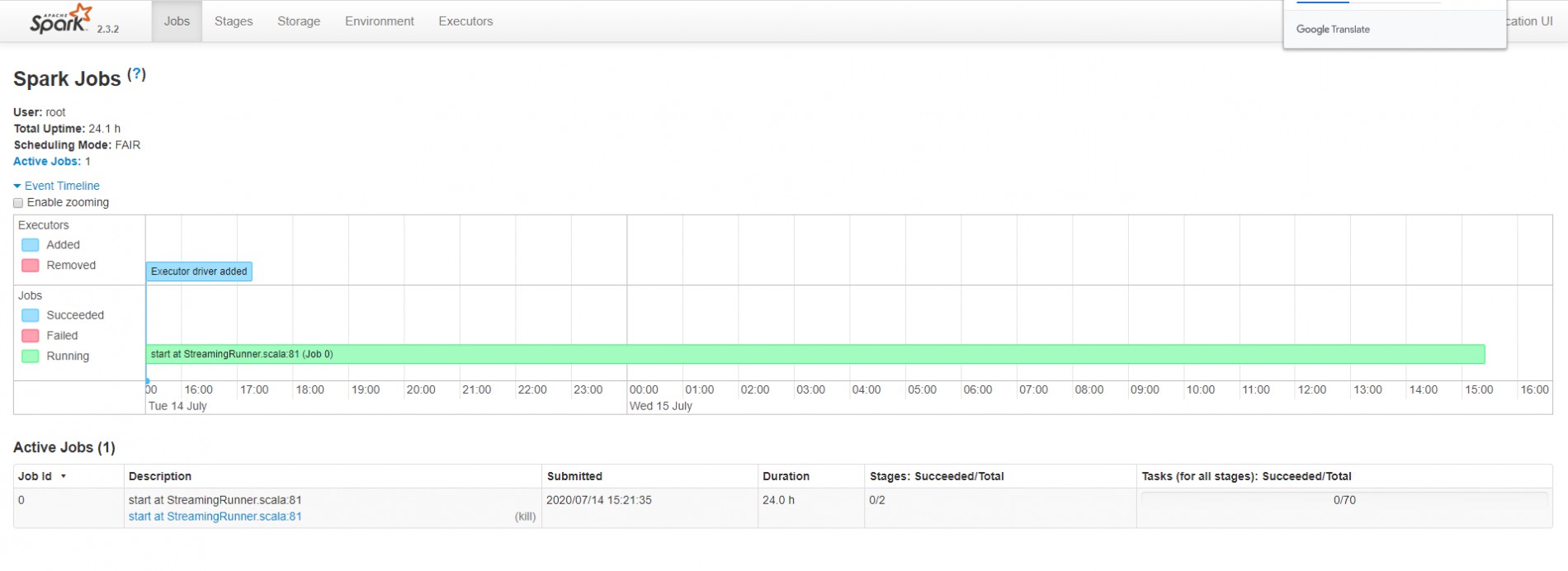

截图：

问题重现步骤：

Answer 1

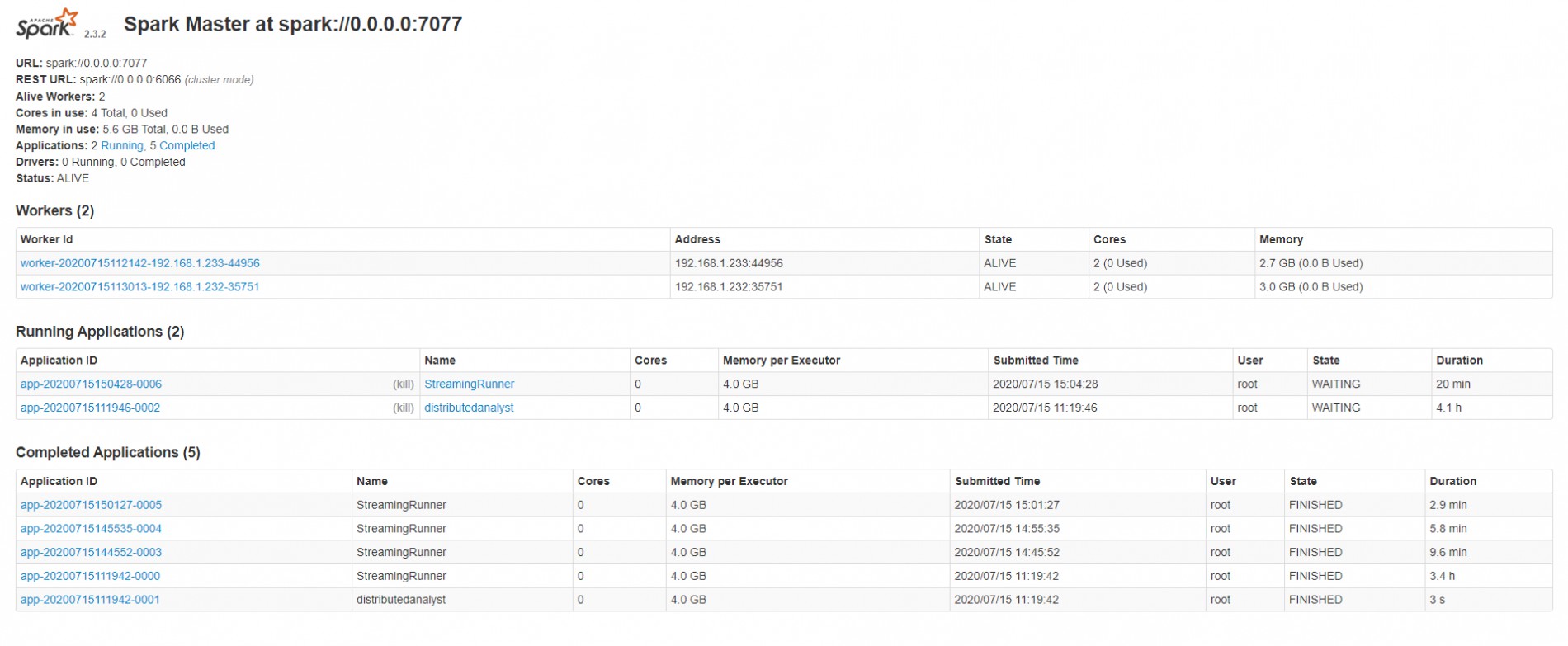

您好，您的application的cores为0，状态为waiting状态，证明一直没有获取到资源，每一个application的默认资源配置内存为4G，默认核数为机器所有核数；建议您先关闭分布式分析任务，并设置spark-defaults.conf中的资源配置

Comments

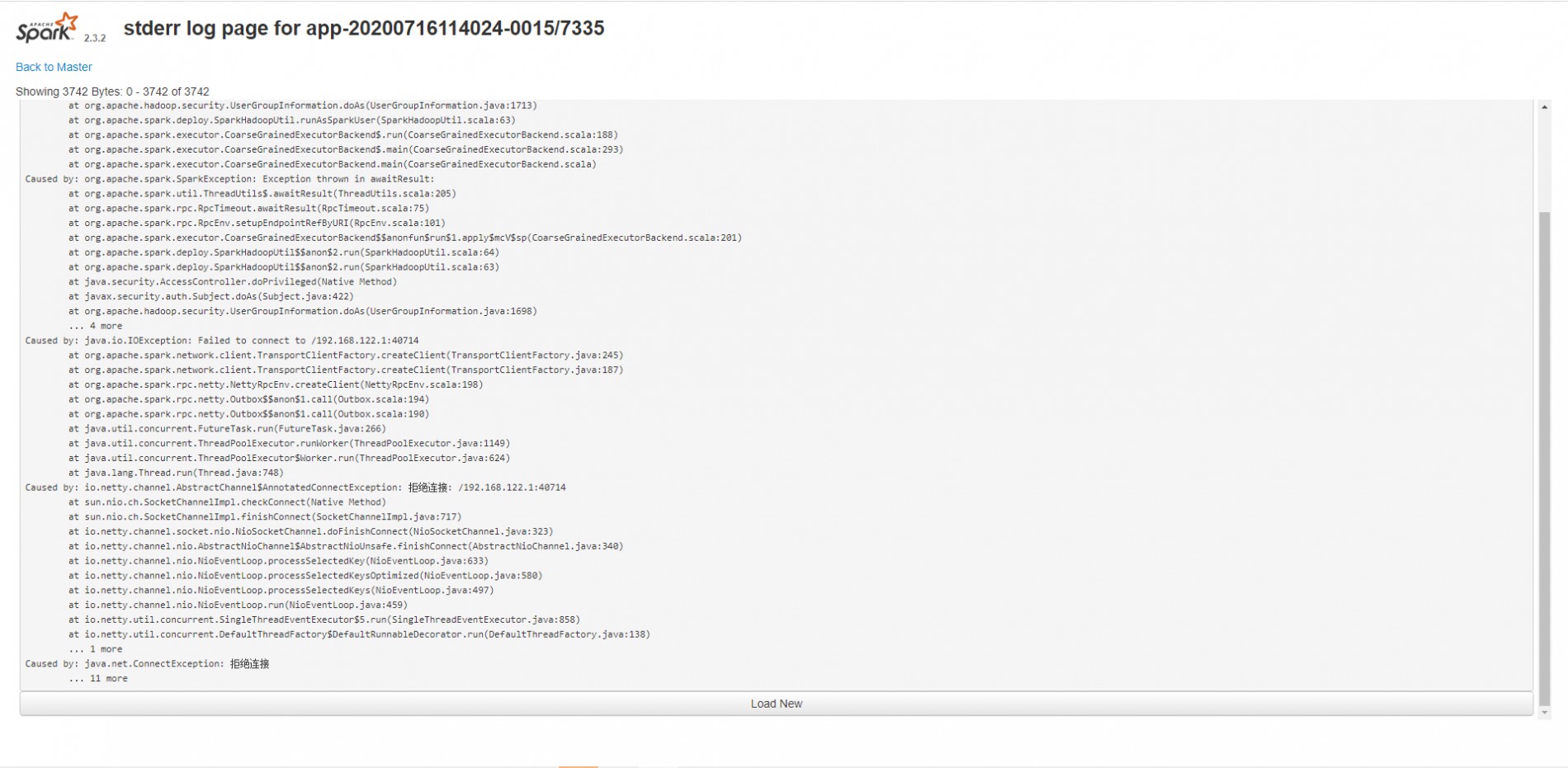

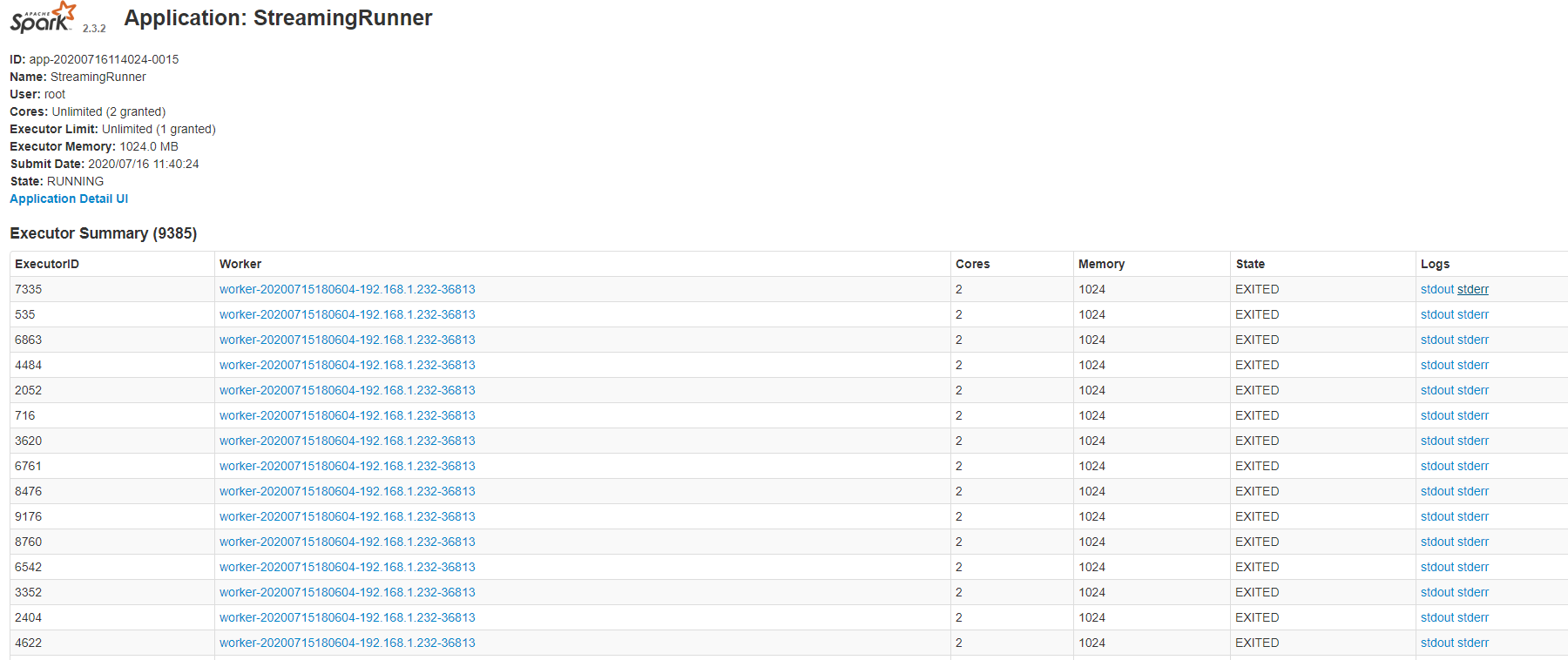

您好，spark现在可以出现application并占用cpu了，但是application的state都是exited,日志都显示job指向了

Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: 拒绝连接: /192.168.122.1:40714
	at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
	at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
	at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
	at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
	at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
	at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
	at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
	at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
	at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
	at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)

---

这个ip是什么ip，是否是其它虚拟网卡的ip，可以先将不用的网卡禁用

---

嗯，是虚拟网桥的IP，去掉了之后，调整了以下服务，内置的spark的方式走通了，现在开始搞集成外部的spark集群的方式

---

你好，我使用iServer 9D进行单机操作流数据的时候也出现了和你问题一样的问题，因为我是个初学者，看了你们的评论后还是不太懂具体怎么操作，如果您看到且有时间的话能告诉我解决这个问题的具体步骤吗，在这里先谢谢您了
