Question

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using SuperMap.Data;
using SuperMap.UI;
using SuperMap.Realspace;

namespace SuperMapProject
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        public Workspace m_workSpace;
        public SceneControl m_sceneControl;
        private void Form1_Load(object sender, EventArgs e)
        {

            Layer3DKML layer1 = sceneControl1.Scene.Layers.Add("kml/world.kmz", Layer3DType.KML, false) as Layer3DKML;
            //Layer3DKML layer2 = sceneControl1.Scene.Layers.Add("kml/CHN_adm3.kmz", Layer3DType.KML, true) as Layer3DKML;
            //Layer3DKML layer3 = sceneControl1.Scene.Layers.Add("kml/CHN_adm2.kmz", Layer3DType.KML, true) as Layer3DKML;
            Layer3DKML layer4 = sceneControl1.Scene.Layers.Add("kml/CHN_adm1.kmz", Layer3DType.KML, true) as Layer3DKML;
            sceneControl1.Scene.Layers.Add("http://t0.tianditu.gov.cn/img_w/wmts?tk=629749d83e93f310149d3a8db41d5032", Layer3DType.WMTS, true);
            sceneControl1.Refresh();
        }


    }
}

使用产品 Supermap iobject for .Net 9d 操作系统:win10 x64

数据类型:天地图 WMTS服务

问题详细描述：sceneControl控件调用天地图挨api不能加载

Answer 1

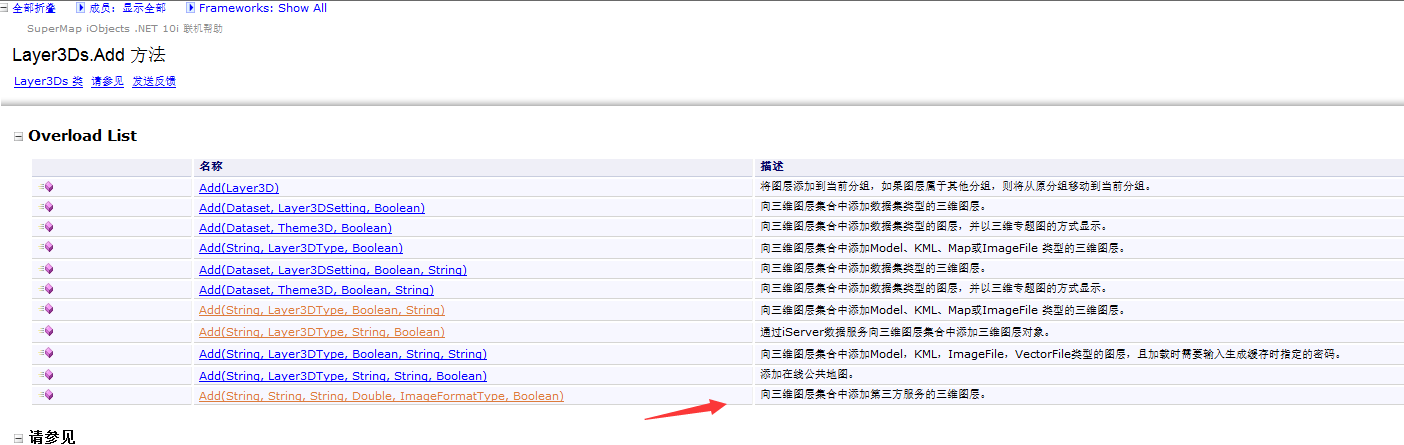

您好,接口应该是

sceneControl1.Scene.Layers.Add("http://t0.tianditu.gov.cn/ter_w/wmts?tk=cca7e5d38f693f5e24cf32322db870f1", "ter", "ter", 96,ImageFormatType.PNG , true);
