vue 编写绘制面板报错引入js文件方法找不到...
71EXP 初出茅庐 2021年12月07日

您好,我按照官方的文档将各个文件夹和文件都引入进去了,为什么还有一个方法找不到报错!

这是在html页面引入的js:

 <link href="./static/css/style.css" rel="stylesheet">

  <script src="./static/Cesium/ThirdParty/Workers/PlotAlgo/PlotAlgoInclude.js"></script>
  <script src="./static/Cesium/jquery.min.js"></script>
  <script src="./static/Cesium/jquery-easyui-1.4.4/jquery-ui.js"></script>
  <script src="./static/Cesium/jquery-easyui-1.4.4/jquery.easyui.min.js"></script>
  <!-- <script type="text/javascript" include="plottingPanel" src="./static/js/include-web.js"></script> -->
  <script type="text/javascript" src="./static/js/plottingPanel/PlottingPanel.Include.js"></script>
  <script src="./static/Cesium/SuperMap-7.1-11828.js"></script>
  <script src="./static/Cesium/StylePanel.js"></script>
</head>
<body>
  <canvas id="loadingbar"></canvas>
  <script src="./static/js/loading.js"></script>
  <div id="app"></div>

  <script src="./static/Cesium/Cesium.js"></script>
  <!--    引入其他依赖-->
  <script src="./static/js/vue.min.js"></script>
  <script src="./static/js/iview.min.js" ></script>

  <script src="./static/js/echarts.min.js" async></script>
  <script src="./static/js/heatmap.min.js" async></script>
</body>

</html>

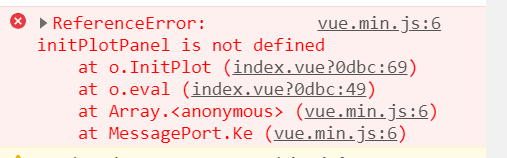

这该引入的都已经引入了呀,为什么他还会报这个错:

我代码是这样写的:

<template>
  <div id="gimfile">
    <div class="table-title">
      <div>报告浏览</div>
      <i @click="clcikCancel" class="el-icon-close"></i>
    </div>
    <div
      class="easyui-panel"
      style="position:absolute;top:0px;bottom:0px;left:0px;right:0px;padding:5px; width: 100%;"
    >
      <div class="easyui-tabs" style="width: 100%;height: 100%">
        <div id="plotPanel" title="标绘面板" style="overflow: hidden;"></div>
        <div
          id="stylePanel"
          title="属性面板"
          style="width: 320px;overflow: hidden"
        ></div>
      </div>
    </div>
  </div>
</template>
<script>
var cesium;
var scene;
var viewer;
var serverUrl;
var plotting;
var plottingLayer;
var plotEditControl;
var plotDrawControl;
var plotPanel;
export default {
  name: "Gimfile",
  data() {
    return {};
  },
  mounted() {
    this.$nextTick(() => {
      cesium = Cesium;
      var host = window.isLocal ? window.server : "https://iserver.supermap.io";
      viewer = window.viewer;

      scene = viewer.scene;
      serverUrl = host + "/iserver/services/plot-jingyong/rest/plot";
      this.InitPlot(viewer, serverUrl);
    });
  },
  methods: {
    InitPlot(viewer, serverUrl) {
      if (!viewer) {
        return;
      }
      plottingLayer = new cesium.PlottingLayer(scene, "plottingLayer");
      scene.plotLayers.add(plottingLayer);

      plotEditControl = new cesium.PlotEditControl(scene, plottingLayer); //编辑控件
      plotDrawControl = new cesium.PlotDrawControl(scene, plottingLayer); //绘制控件
      plotDrawControl.drawControlEndEvent.addEventListener(function() {
        //标绘结束,激活编辑控件
        plotEditControl.activate();
      });

      plotting = cesium.Plotting.getInstance(serverUrl, scene);
      //标绘面板
      initPlotPanel(
        "plotPanel",
        serverUrl,
        plotDrawControl,
        plotEditControl,
        plotting
      );
      stylePanel = new StylePanel("stylePanel", plotEditControl, plotting);
    },

    clcikCancel() {
      this.$router.push("smViewer");
    },
  },
};
</script>
<style lang="scss" scoped>
@import "./index.scss";
</style>

您好,您能看出来是什么问题吗?

1个回答

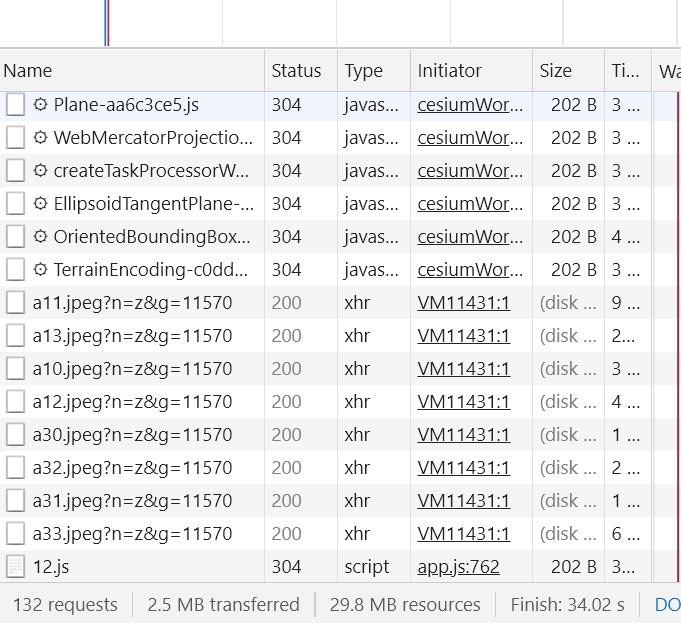

看下控制台network里面有没有请求某个js的时候是404或者400的
6,067EXP 登峰造极 2021年12月08日

项目里面就这三个有报错,这三个是项目从一开始下载下来就报错着呢!

我打开动态绘制页面,没有报错的文件!

大佬能看一下我这个是什么情况吗?
......
可以远程?发下qq,我加你
834275315
...
